280×200×90 mm 24 fibers Mini fiber optic splice enclosure / fiber splice enclosure

Brand Name : CY

Model Number : GJS-301mini

Certification : ISO9001:2008, SGS, ROHS

Place of Origin : China

MOQ : 20pcs

Price : USD 10.9-11.5/PCS

Payment Terms : T/T, Western union

Supply Ability : 40000pcs per month

Delivery Time : in 5-10 days

Packaging Details : 5pcs/carton

Cable ports : 2

Max capacity : 96 single fibers

Dimension : 280×200×90 mm

Material : PC

Weight : 1.2-1.5KG

Contact Now

24 fibers Mini fiber optic splice enclosure / fiber splice enclosure

►Introduction

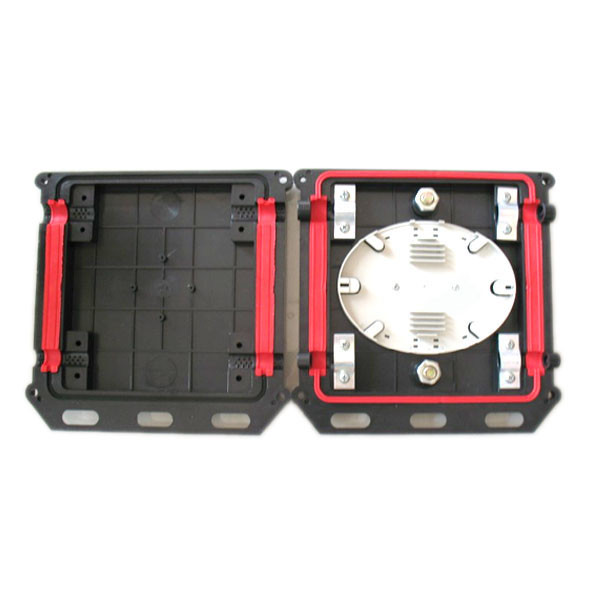

GJS-301mini has 2/4 cable entry ports. It can accommodate up to 4 24-fiber splice trays. The closures employ gasket-sealing technology that enables ease of installation and re-entry requiring no special tools.

►Applications

Suitable for ribbon and bunchy fibers
Aerial
Cable duct
Direct burial

►Features

Reliable gasket sealing
Easy installation with no special tool required
Re-enterable with no re-entry kit needed
High compressive strength

►Specification

Characteristics	Value/Performance
Type	GJS-301mini
Basic
No. of Cable Port	2/4
Max. Cable Diameter allowed	14mm/12mm
Dimension	280×200×90mm
Weight	1.2~1.5Kg
Operating Temperature	-40 ~ +60°C
Fiber Bend Radius	30mm
Max. No. of Splice Trays	4
Max. Capacity (single fiber splice)^*1	96

280×200×90 mm 24 fibers Mini fiber optic splice enclosure / fiber splice enclosure
